Go the Distance in Style: 2020 Harley-Davidson® Tri Glide® Ultra at Corpus Christi Harley-Davidson

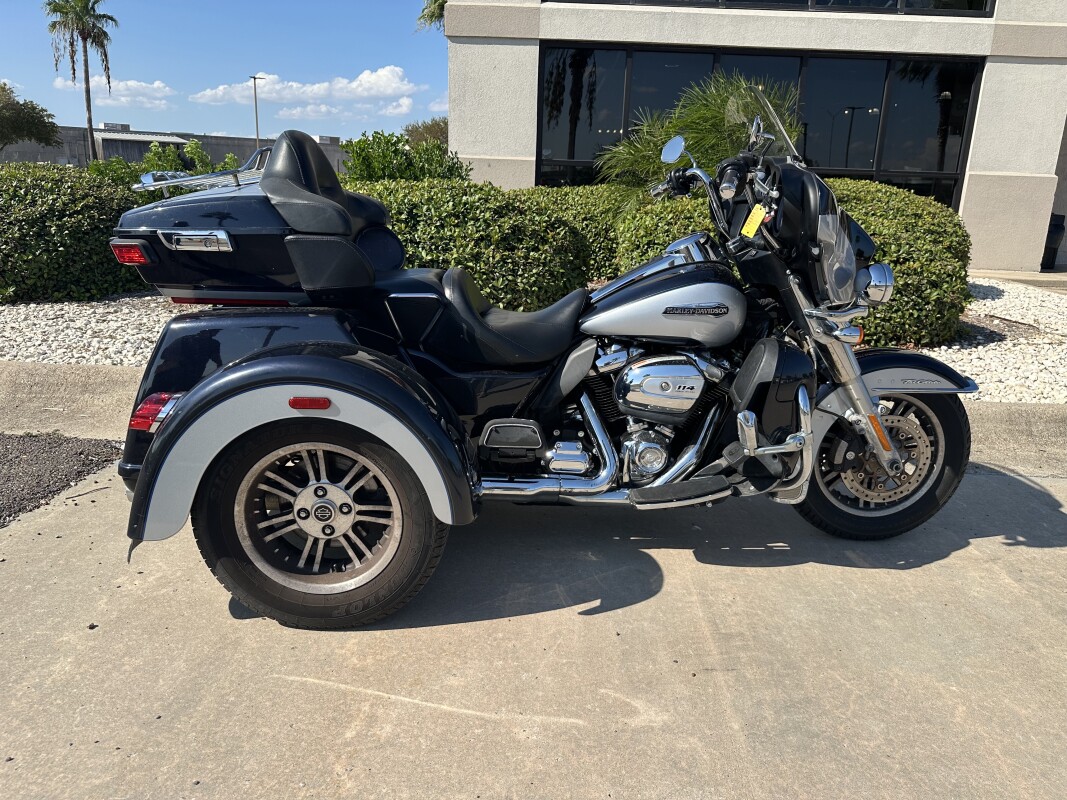

Discover the ultimate in long-haul touring and three-wheeled stability with the 2020 Harley-Davidson® Tri Glide® Ultra, now available at Corpus Christi Harley-Davidson. This incredible machine is finished in a stunning two-tone Midnight Blue and Barracuda Silver with a subtle pinstripe, a combination that truly makes a statement on the road. Perfect for riders seeking a confident, comfortable, and commanding touring experience, the Tri Glide® Ultra redefines what a motorcycle can be.

Powered by the robust Milwaukee-Eight® 114 engine, this trike delivers smooth, on-demand power and a soul-satisfying rumble. It's built for comfort, featuring a premium infotainment system with navigation, a spacious trunk and Tour-Pak® luggage carrier, and an ergonomic design that makes mile after mile feel like a breeze. The Tri Glide® Ultra offers the legendary Harley-Davidson® touring experience with the added stability of three wheels, ensuring confidence on every curve and in any weather.

Visit us at Corpus Christi Harley-Davidson to explore this exceptional 2020 Tri Glide® Ultra. Whether you're planning a cross-country adventure or simply want to cruise with ultimate comfort and confidence, this trike is built to make every ride unforgettable. Contact us today to schedule your test ride and see the difference for yourself.

Specifications

Dimensions

add remove
- Length:

  105.1 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  26
- Trail:

  3.9 in
- Wheelbase:

  1,670.0 in
- Tires, front specifications:

  MT90B16 72H
- Tires, rear specifications:

  P205/65R15 92T
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  1,204 lbs
- Weight, in running order:

  1243 lb
- Luggage capacity – volume:

  6.8 cu ft (0.19 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight® 114
- Bore:

  4.0 in
- Stroke:

  4.5 in
- Displacement:

  113.99 in³
- Compression ratio:

  10.5:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Chrome, 2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  121.0 ft-lb
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  0.00 mpg
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  10.534
- Gear ratios (overall) 2nd:

  7.302
- Gear ratios (overall) 3rd:

  5.423
- Gear ratios (overall) 4th:

  4.392
- Gear ratios (overall) 5th:

  3.741
- Gear Ratios (overall) 6th:

  3.157
Chassis

add remove
- Wheels, front type:

  Black, 7-spoke Cast Aluminum
- Wheels, rear type:

  Black, 7-spoke Cast Aluminum
- Brakes, caliper type:

  Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
Electric

add remove
- Lights (as per country regulation), indicator:

  High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator
- Gauges:

  Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  25
- Speakers:

  4
- Speaker size:

  5.25 inch/6.5 inch P&A Upgrade
- Headset specifications (if equipped):

  16 - 64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Text-to-Speech (TTS) languages:

  English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese
- Rider / passenger intercom:

  Standard
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
